Most people picture a topo survey as a stack of squiggly lines on a map. That’s part of it. But the real value sits in what those lines and marks tell you about a piece of ground before anyone breaks it. If you’re buying, building, or planning work on land, here’s what actually shows up on that map, and why it matters.
Drainage Paths, Low Spots, and Water Flow Direction on Your Land

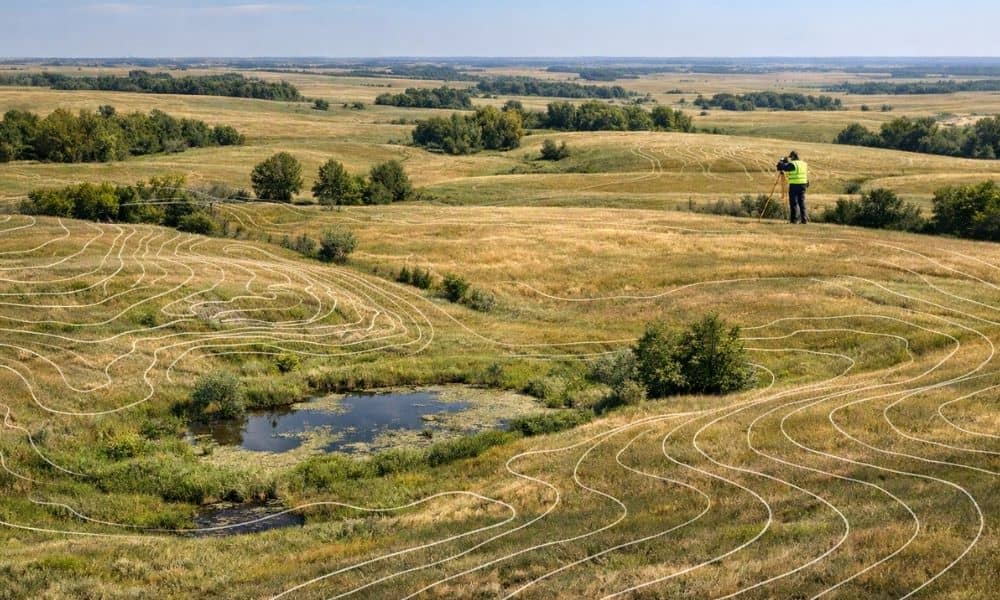

Contour lines aren’t just decoration. They trace the shape of the ground, which means they also trace where water goes when it rains or melts.
A tight cluster of lines means a steep slope. Wide, spread-out lines mean flat ground. Follow the pattern downhill, and you can see where water pools, where it channels, and where it drains off the property.
This matters a lot in South Dakota. Spring snowmelt can send a surprising amount of water across a site in a short window, and prairie thunderstorms can drop heavy rain fast. A survey that shows low spots and flow direction helps a builder plan grading, gutters, and drainage before a foundation goes in the ground, not after water finds its way into a basement.
Vegetation Cover, Tree Lines, and Natural Landscape Features
A topo survey does more than track elevation. It also marks what’s growing on the site.
Large trees, tree lines, brush, and other natural ground cover usually get located and shown on the map. This gives a builder or architect a clear picture of what stands between the current state of the land and a finished project.
That matters for site clearing. If a design calls for a driveway or building pad in a spot with mature trees, someone needs to know that before construction starts, not during it. Knowing what’s there ahead of time keeps clearing costs and timelines from turning into a guessing game.
Surface Clues to Underground Utilities and Buried Infrastructure
A surveyor working in the field notes what’s visible above ground: utility risers, manholes, valve covers, meter boxes, and similar markers.
These surface features give a rough idea of what utility lines might run underneath the site and roughly where. That’s useful for early planning.
It’s not a full underground utility, though. A topo survey shows the visible clues on the surface. It doesn’t confirm exact depth or the precise path of a buried line. For that, you need a dedicated utility located before any digging starts. Treat the topo survey as a starting point for utility awareness, not a final answer.
How Terrain Shapes Buildable Area on South Dakota Properties
South Dakota isn’t one kind of ground. Land in the eastern part of the state tends to run flat, shaped by decades of farming. Head west toward the Black Hills, and the grade changes fast, with steep slopes and rock outcrops.
That difference changes what a topo survey needs to capture. A flat parcel might only need a handful of contour lines to show the shape of the land clearly. A sloped Black Hills lot often needs tighter contour intervals to catch every grade change that affects where a structure can actually sit.
The terrain also shapes how much usable, buildable area exists on a lot. Two properties of the same size can offer very different amounts of flat, workable ground once the topo survey shows the real shape of each site.
Erosion-Prone Slopes and Soil Stability Indicators
Elevation data does one more job: it flags slopes that might be prone to erosion or instability.
Steep grades near riverbanks, draws, or bluffs, common across rural South Dakota, carry a higher risk of soil movement over time. A topo survey shows where those steep sections sit and how sharply the ground drops.
That information helps a builder or engineer plan around unstable ground rather than build on it and deal with problems later. It’s also useful for anyone thinking about long-term land use, like farming, grazing, or setting aside a spot for future construction.
FAQ
Will a topographic survey show the location of my septic system or well?
Only if those features are visible or marked on the surface when the survey happens. A topo survey isn’t a substitute for as-built septic or well records.
Can a topo survey help plan a walkout basement on sloped land?
Yes. The contour data shows the natural grade change across the site, which helps a designer figure out if a walkout basement will work.
Does a topographic survey include fence lines and existing structures?
Yes. Visible improvements like fences, sheds, and retaining walls are usually located and shown right alongside the elevation data.
How does South Dakota’s varied terrain affect the level of detail needed in a topo survey?
A flat parcel in eastern South Dakota may need fewer contour intervals. A sloped Black Hills lot usually needs tighter intervals to capture grade changes accurately.
Can a topographic survey help resolve a drainage disagreement with a neighbor?
It can document existing water flow direction and elevation differences between properties. That’s useful supporting information, though it doesn’t decide legal drainage rights on its own.
